⚡️ Battery Guardian: The Essential Role of the Charge Controller

In off-grid and battery backup systems, the charge controller regulates power flow to prevent overcharging and maximize battery life.

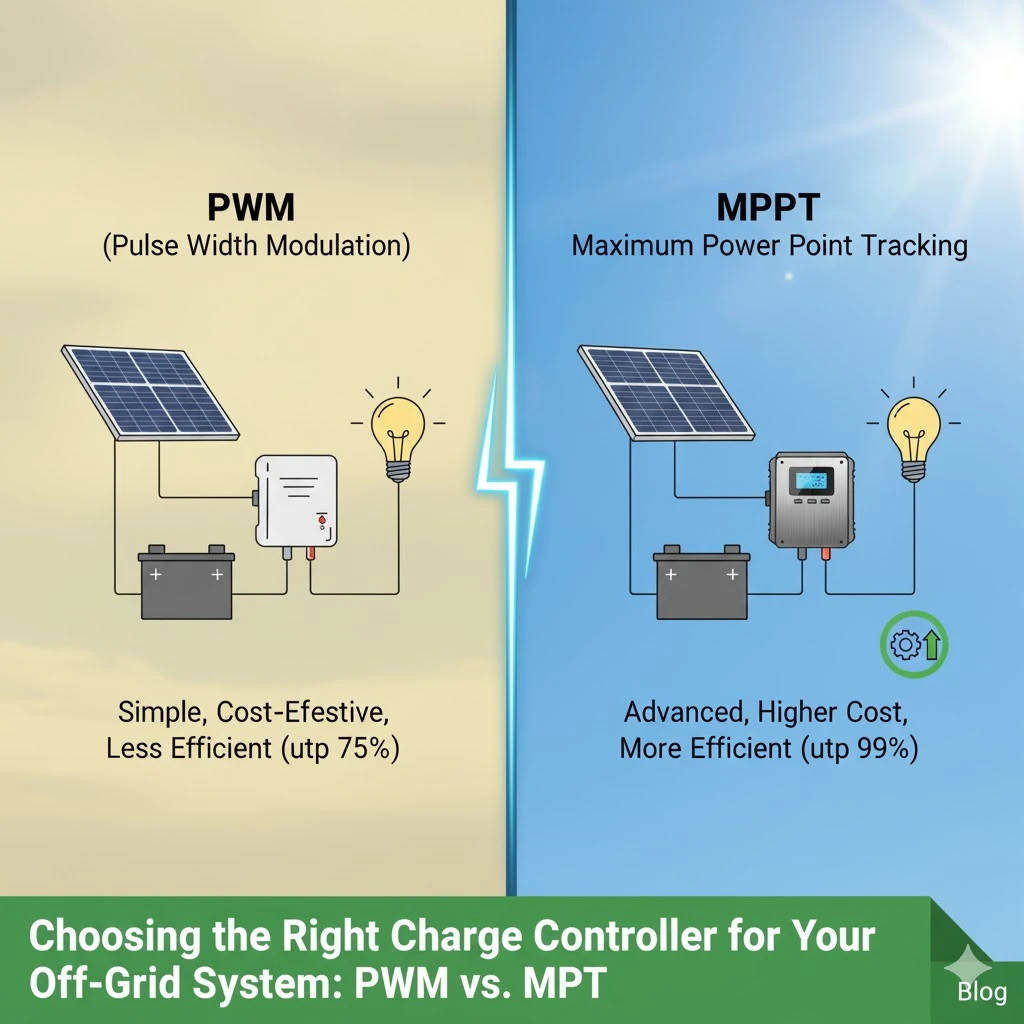

1. Pulse Width Modulation (PWM) Controllers

The simplest and most affordable form of charge regulation.

• ✅ **Pros:** Low cost, high durability, simple technology.
• ❌ **Cons:** Limited efficiency (loss of 20%+ power), requires the panel voltage to closely match the battery voltage.
• **Ideal For:** Small systems, such as lighting, sheds, or RVs, where cost is the main driver and panel size is limited.

2. Maximum Power Point Tracking (MPPT) Controllers

Advanced technology that dynamically matches the panel output voltage to the battery voltage for maximum efficiency.

• ✅ **Pros:** Significantly higher efficiency (90% to 99%), can boost power output by 10-30% on cloudy days, allows panels to be wired at higher voltages.
• ❌ **Cons:** Higher initial cost, more complex electronic components.
• **Ideal For:** Larger off-grid homes, systems requiring peak performance, and cold weather climates.

The Takeaway

For virtually any residential system, the added cost of an **MPPT controller** is quickly recouped through the increase in power generation and overall system efficiency, making it the preferred choice. 💡
