Outdoor safety
Improves visibility around gates, roads, parking, farm boundaries and factory areas.
Reliable outdoor lighting
Solar Street Light Installation in Bharuch
Industrial and commercial solar street lights for factories, roads, farms, societies and public areas, with pole installation and support.
✓ No grid wiring required✓ Automatic dusk-to-dawn operation✓ Supply and installation support
Light where wiring is difficult
What are solar street lights?

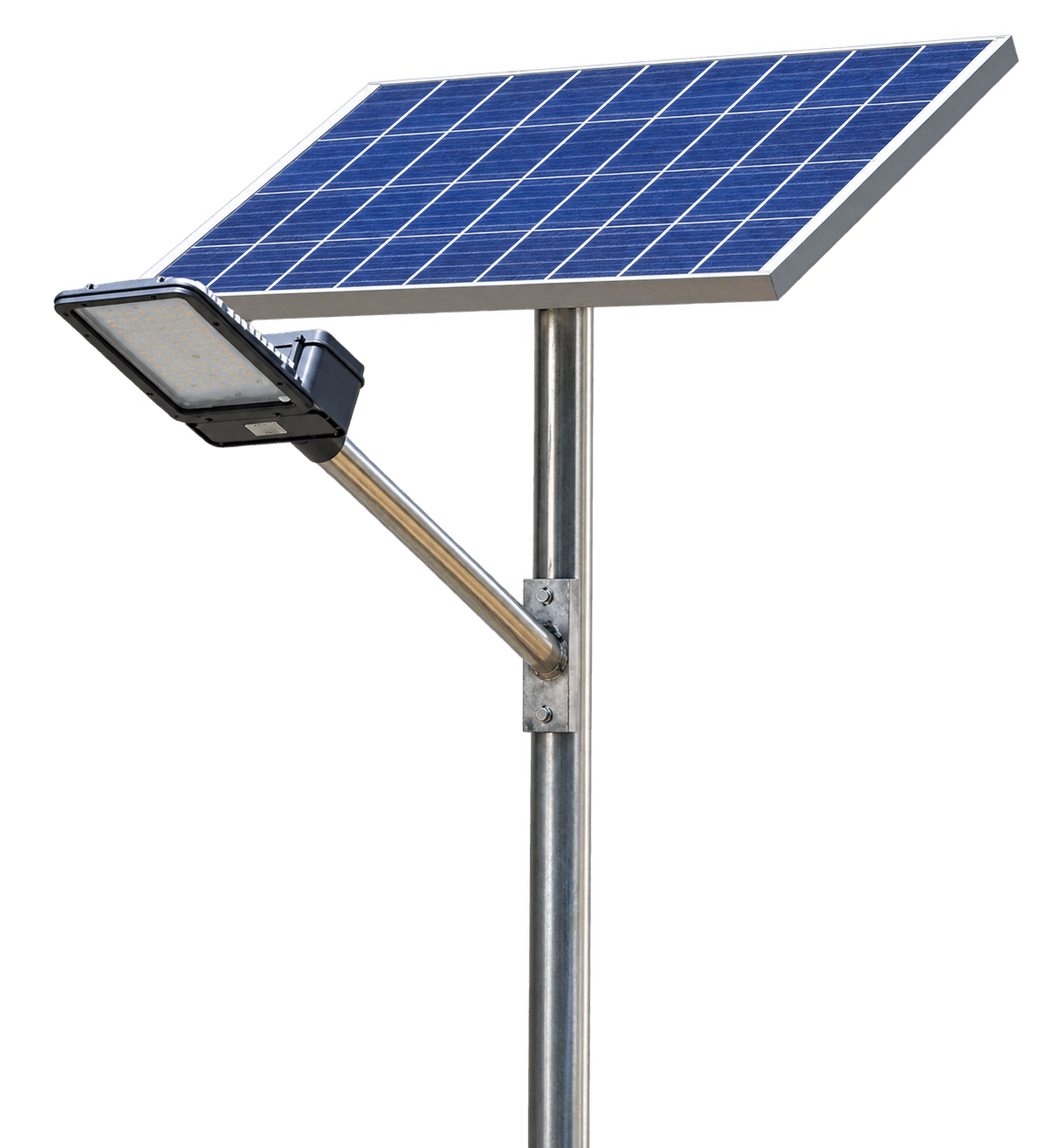

Solar street lights are independent outdoor lights with panel, battery, controller and LED fixture. They charge in the day and automatically light roads, farms, societies, factories and open areas at night.
No trench wiring
Useful where underground cabling is costly or difficult.
Automatic operation
Dusk-to-dawn control gives lighting without daily manual switching.
Plan before installation
See how a solar street light works
During the day the panel charges the battery. At night the controller automatically switches on the LED. Compare pole height and lens angle to understand the expected light footprint.
Beam angleLED wattage
Automatic LED ON · 30W
6 m pole45° beam · 8 × 12 m
Pole height
6 metres
LED power
30 W
Approx. output
3,300 lm
Light footprint
8 × 12 m
Covered area
96 m²
Est. average lux
15 lux
Day-to-night operation
Solar panel charges the battery in daylight. The dusk sensor turns the LED on automatically at night and switches it off after sunrise.
Recommended pole spacing
Approximately 18-24 m, adjusted after site lighting calculations.
Where this setup works
Farm paths, society roads, parking edges and internal factory roads.
45° Focused lens
Focused forward throw for a road or defined target area. A narrower beam concentrates light and raises lux in a smaller area; a wider beam covers more ground with lower average lux.
Coverage and lux are preliminary estimates using approximately 110 lm/W and a 45% utilisation factor. Final minimum/average lux, uniformity and spacing must be confirmed from the selected lamp's IES photometric file and a site lighting design.
Residential & Commercial Range
Street Lights Under ₹6,000
Perfect for parks, gardens, pathways, residential areas, and small commercial spaces. All units come with complete installation kit.

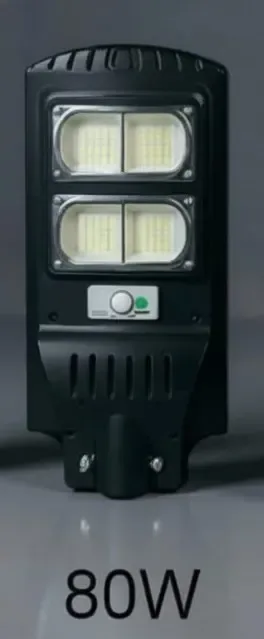

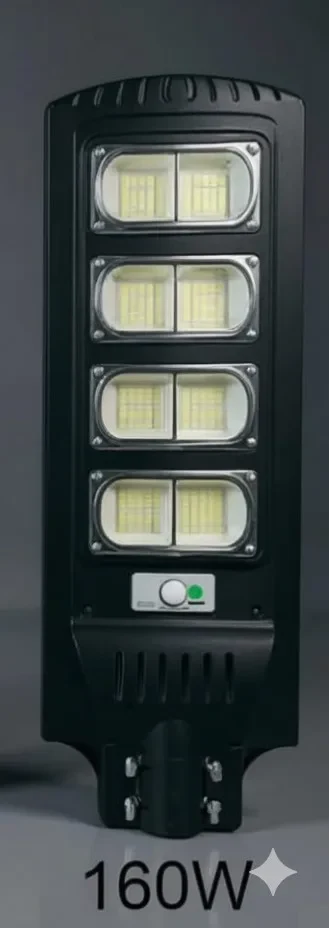

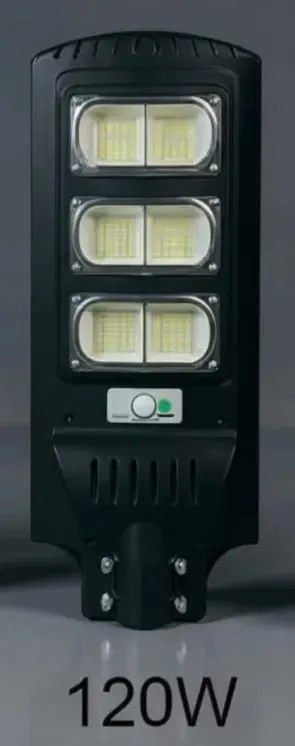

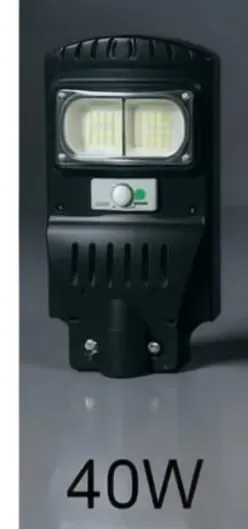

All-in-One Integrated Solar Lights
Solar panel, LED, battery & controller in one compact unit
Compact Design
Easy Installation
Low Maintenance
Weather Resistant
Best Seller
Premium
Premium
Semi-Integrated Solar Lights
Separate solar panel for flexible positioning & better efficiency
Flexible Placement
Higher Efficiency
Easy Panel Angle
Larger Battery
Real industrial installation work

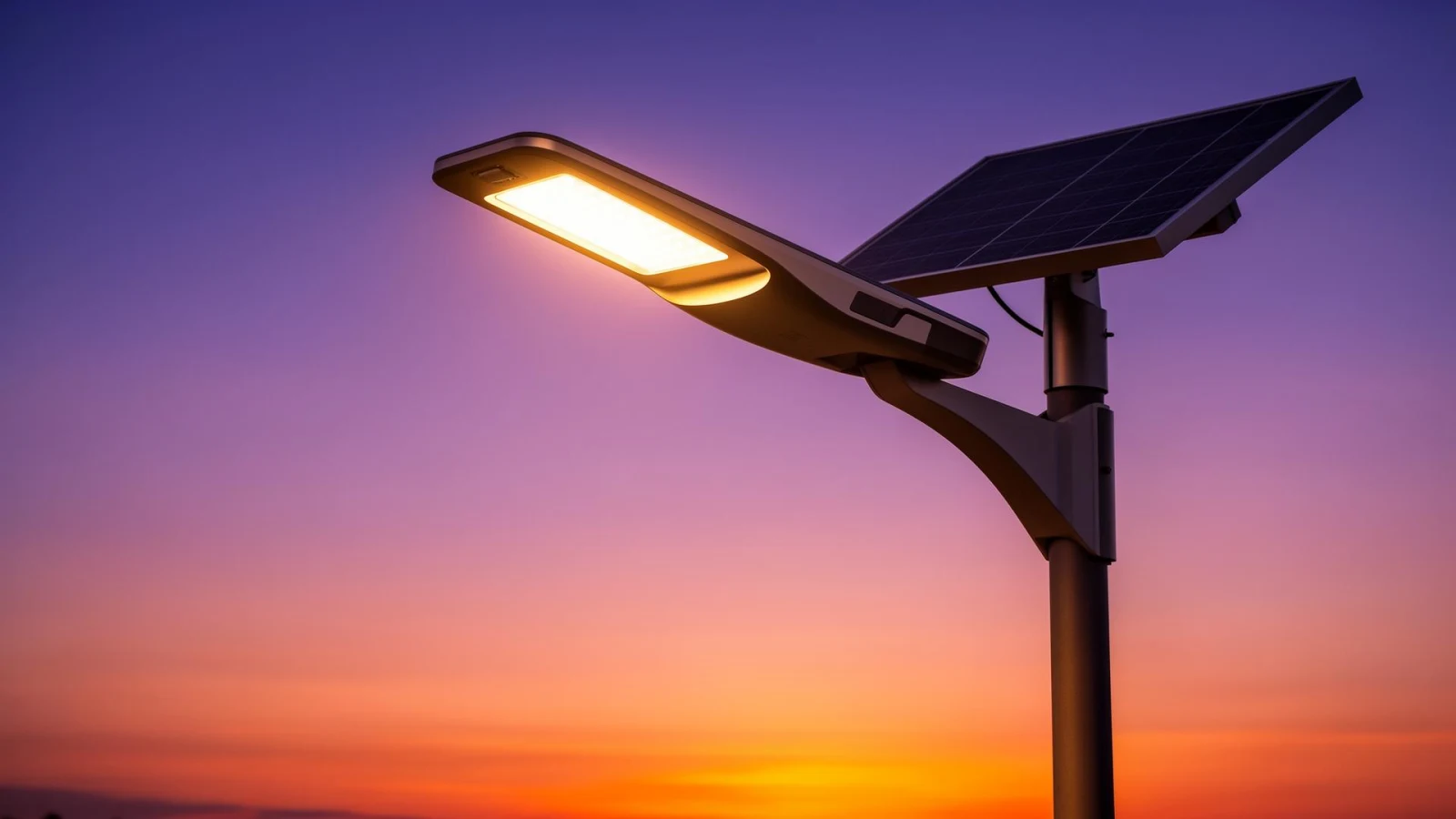

Industrial Solar Street Light Installation
See the real site flow from concrete foundation to pole transport, colour work, light and panel fitting, pole erection, testing and handover.
MS cage and base plate prepared before concrete work
Poles, brackets and hardware checked before dispatch
LED head, controller wiring and lithium battery assembly
Original site experience
Built for roads, factory yards, parking and security areas
Industrial solar street lights are not only product fitting. Pole strength, concrete base, light wattage, panel size, battery backup, wiring protection and installation angle decide how reliable the light will be after monsoon, dust, wind and daily use.
From
Rs. 20,500
5m-9m pole height
Selected after site checking
15W-30W+ LED
Selected after site checking
RCC anchor base
Selected after site checking
How we install
Step-by-step work flow
Every site is different, so final material, foundation size, pole height and wattage are confirmed after checking soil, road width and mounting location.
01
Site marking and spacing
Road width, boundary wall shadow, gate movement, vehicle turning, camera area and required light throw are checked first. Pole distance and wattage are selected from the real site condition.
02
Concrete base work
The pit is made as per pole height and soil strength. Anchor bolts are held with a template, concrete is filled and curing time is given so the pole remains straight in wind and vibration.
03
Pole material and colouring
For industrial work we use GI/MS tubular or octagonal poles with base plate, arm bracket, nut-bolt set and anti-rust paint or galvanized finish as per site requirement.
04
Light, panel and wiring fitting
LED light, solar panel, lithium battery, charge controller and protection wiring are fitted cleanly on the pole. Panel direction and tilt are set for better charging through the day.
05
Pole fixing and handover
The pole is lifted onto the RCC base, tightened on the anchor bolts, leveled, wired and checked for charging, dusk-to-dawn operation, light throw and final safety.
Site photo and video proof
Installation shown one by one
Follow the same sequence used on site: foundation, material handling, fitting, pole erection and final explanation.
01
Foundation first
Concrete setup and anchor cage
We start with pit marking, excavation and the anchor bolt cage. The bolts are kept in line before concrete, because this decides whether the pole will sit straight after installation.
RCC foundationAnchor bolt templateCuring before pole load
02
Heavy material handling
Pole transport, material checking and colour work
Pole, brackets, clamps, nut-bolts, wiring and fittings are checked together. For outdoor industrial sites we prefer GI/MS structure with anti-rust finish and proper handling during transport.
GI/MS poleBase plate and bracketsAnti-rust finishing
03
Electrical assembly
Street light and solar panel fitting on pole
The LED street light, solar panel, battery/controller box and wiring are fitted before pole erection wherever the site allows. This keeps the work safer and the wiring cleaner.
LED light headSolar panel bracketLithium battery and controller
04
Erection and alignment
Pole fitting on concrete base
After the base is ready, the pole is lifted, matched with the anchor bolts and tightened with washers and nuts. Level, direction and cable safety are checked before final locking.
Pole liftingNut-bolt tighteningFinal alignment
05
Proof and handover
Final testing and site explanation
The complete installation is checked for charging, auto on-off timing, light throw, panel direction and controller safety. The customer also gets a clear explanation of the installed system.
Charging checkNight light throwServiceable system
Pole and structure
- GI/MS tubular or octagonal pole
- Heavy base plate with anchor bolts
- Single-arm or custom bracket as per road width
- Anti-rust paint or galvanized finish option
Solar light system
- 15W, 20W, 30W and higher wattage options
- IP65/IP66 LED light body for outdoor use
- Mono or poly solar panel sized for backup need
- Lithium battery and smart charge controller
Foundation and safety
- Site-specific pit size based on pole height
- RCC concrete base with aligned anchor bolt cage
- Cable routing with proper insulation and protection
- Final tightening, leveling and night performance check
Product options
Industrial light range
Choose the light after checking pole height, working hours, backup need and open area width. We can recommend the right wattage after a site photo, video or visit.
15 Watt LED1,125 lm
Industrial Power 15W
GI/MS poleIP66 light bodyAuto on/off
Rs. 20,500
Coverage: 10m radius
20 Watt LED2,250 lm
Industrial Power 20W
Heavy-duty bracketLithium battery2 year warranty
Rs. 22,500
Coverage: 12m radius
30 Watt LED3,000 lm
Industrial Power 30W
Large area coverageWeather resistantService support
Rs. 24,500
Coverage: 18m radius
Benefits after proper installation
A good solar street light project gives stable night lighting only when the right material and civil work are done together.
No trenching for long AC cable lines
Automatic lighting without daily manual switching
Useful for factories, parking, farm roads and boundary roads
Lower electricity bill with independent solar operation
Improves night movement, security camera visibility and safety
Serviceable battery, controller, panel and LED head
Why Choose Solar
Benefits of Solar Street Lights
Make the smart switch to sustainable lighting and enjoy long-term savings with minimal maintenance.
Zero Electricity Cost
100% solar powered with no electricity bills. Save thousands every year on energy costs.
All Weather Performance
IP65–IP68 rated for rain, dust, and extreme temperatures. Works reliably year-round.
Easy Installation
No trenching or wiring needed. Complete installation in under 2 hours per unit.
Long Lifespan
LED lights last 50,000+ hours. Solar panels with 25-year performance warranty.
Auto On/Off
Automatically turns ON at night and OFF during the day using sunlight sensor.
Eco-Friendly
Reduce carbon footprint significantly. Each light saves up to 2 tons of CO₂ annually.
Solar Street Light
Solar street light solutions for outdoor area lighting, industrial roads, housing societies, farms, parking areas and village roads.
200W all in one Solar street Lamp white
100W Semi integrated solar light with solar panel, Remote & Arm (2 Window)300W C-Shape All in One Street Lamp with Arm
200W C-Shape All in One Street Lamp with Arm
120w Solar All In One Street Lamp(YL)
200W all in one Solar street Lamp Aluminium Light
50 WATT INTEGRATED SOLAR STREET LIGHT
100 WATT INTEGRATED SOLAR STREET LIGHT
200W Semi Integrated solar light with Solar panel, Remote & Arm ( 4 Windows)
300W Semi Integrated Solar light with solar panel, Remote & Arm ( 6 Windos)
200W UFO SOLAR STREET LIGHT
