Farm irrigation
Good for farmers who need water mainly in daytime when sunlight is available.
Irrigation made simpler
What is a solar pump system?
A solar pump uses solar panels and a controller to run a water pump for irrigation, borewell, open well or water transfer. It reduces dependency on daytime electricity and diesel for regular farm water needs.
Borewell and open well
Can be planned for submersible or surface pump needs from 1HP to larger setups.
Lower running cost
Reduces diesel use and grid dependency for routine water pumping.
Pump and solar sizing guide
How much water will your solar pump deliver?
Choose a pump duty point to see hourly and daily water output. Then enter the pumping water level and tank height to estimate the total head your system must overcome.
Rated flow
25 LPM
Operating head
60 m
Shut-off head
75 m
Suggested solar
1.0 kW
Estimated water in 6 hours
9,000 litres/day
1,500 litres per hour at the stated operating head.
15 stage · 200 V three phase · 1.25 in discharge outlet · 0.75 kW motor rating
Borewell to elevated tank planner
Estimated total dynamic head: 47 m
30 m water lift + 12 m tank height + 5 m allowance for pipe friction. First matching option: 1 HP - higher head.
Operating head
The head where the listed LPM is expected. Flow normally reduces as total head increases.
Shut-off head
The maximum pressure point at zero flow. Never select a pump expecting useful water at shut-off head.
CSR village tank system
A steel tank tower can avoid dependence on a concrete roof. Structural design, foundation, wind load and water quality must be checked on site.
Daily output is a planning estimate: LPM × 60 × effective sun hours. Actual output changes with sunlight, seasonal water level, pipe size, cable loss, controller settings and pump curve.
Smart Technology
Solar Charge Controller
Our advanced MPPT solar charge controllers ensure maximum efficiency from your solar panels. Intelligent algorithms optimize power extraction in all weather conditions.
MPPT Technology
Maximum Power Point Tracking for optimal solar energy harvesting
Real-time Monitoring
LCD display showing voltage, current, power and system status
Built-in Protection
Over-voltage, under-voltage, overload and dry-run protection
Remote Control
Optional WiFi module for smartphone monitoring and control
Battery Backup
Compatible with battery systems for 24/7 operation
Data Logging
Store historical data for performance analysis
Dual Power Source
Solar + Grid Hybrid System
Never worry about cloudy days or nighttime operation. Our hybrid pumps automatically switch between solar and grid power for uninterrupted water supply.
Solar Power
Primary power source during daytime. Zero electricity cost.
Smart
Controller
Auto Switch
Grid Power
Backup power for cloudy days and night operation.
Automatic Switching
Seamless transition between solar and grid
24/7 Operation
Water supply day and night, rain or shine
Priority Solar
Uses solar first, grid only when needed
Energy Efficient
Reduces grid consumption by up to 80%
Why Choose Solar Pumps?
Join thousands of farmers who have switched to solar and never looked back. Experience the benefits of sustainable, cost-effective irrigation.
Save 80% on Bills
Dramatically reduce electricity costs with free solar energy powering your irrigation needs.
Eco-Friendly
Zero carbon emissions. Contribute to a cleaner environment while growing your crops.
Low Maintenance
Minimal moving parts mean fewer breakdowns. Clean panels occasionally, that's it.
Easy Installation
Professional installation within 2–3 days. No complex wiring or civil work required.
25 Year Warranty
Long-lasting performance guaranteed. Solar panels come with 25-year manufacturer warranty.
24/7 Support
Our technical team is always ready to assist with any queries or maintenance needs.
Customer Gallery
Real installations, customer reviews, and demo videos of solar pump systems.

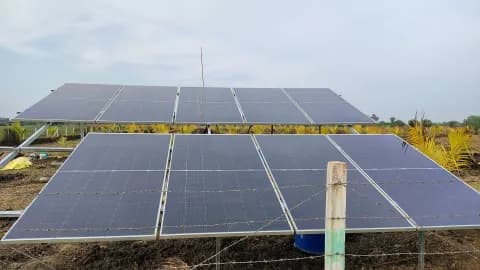

5 HP Solar Pump Installation

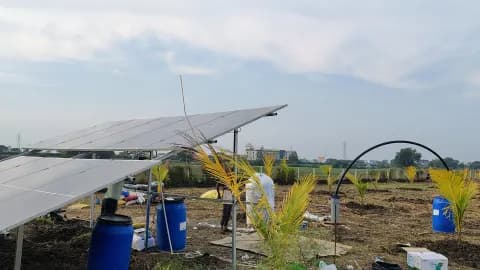

5 HP Solar Pump Installation

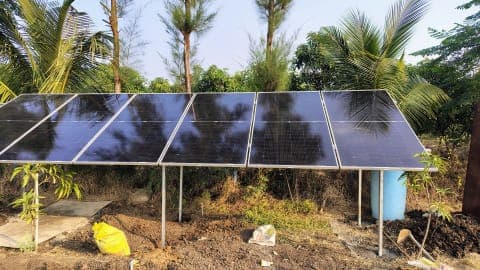

3 HP Solar Pump Installation
Solar Pump Working Demo

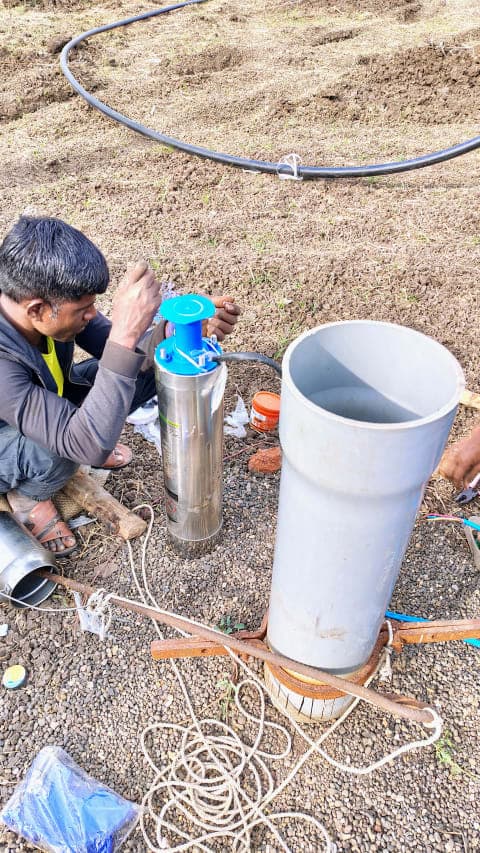

Customer Site Installation

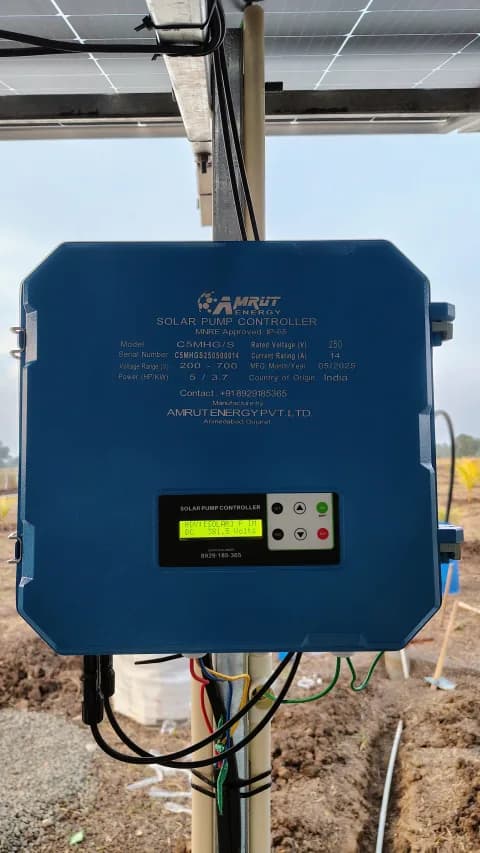

Solar Pump Controller

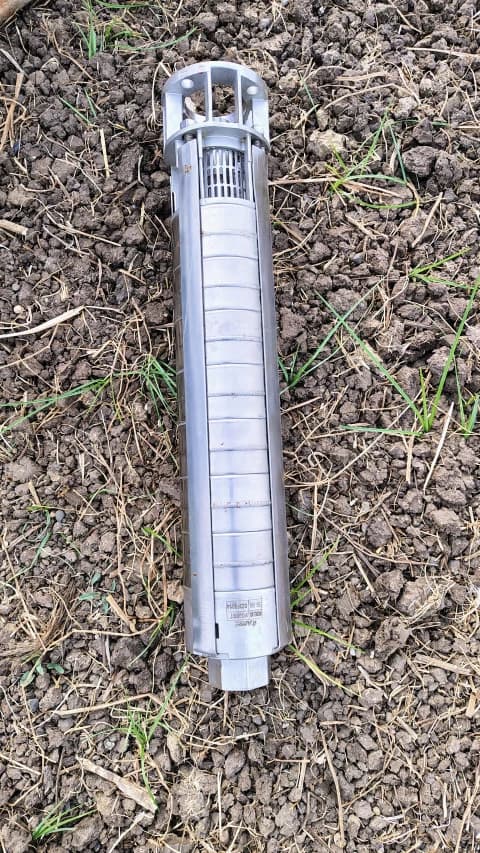

Customer Site Installation
