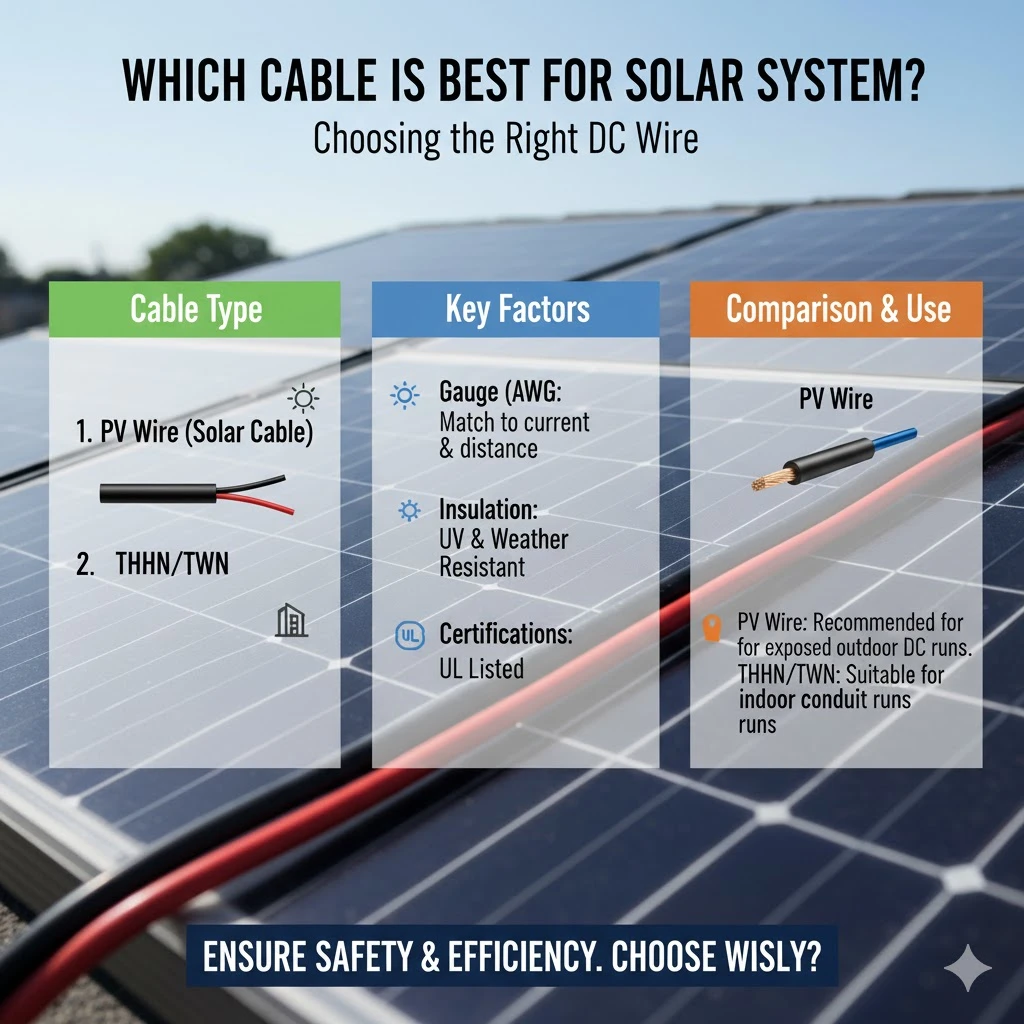

🔌 The Unsung Hero: Selecting High-Quality Solar DC Cable

Using the wrong cable can lead to significant energy losses, fire hazards, and system failure. Always use cables rated specifically for solar.

1. Mandatory Type: DC Solar Cable (UV Rated)

Solar panels produce Direct Current (DC), which requires cables designed to withstand harsh outdoor conditions.

• ✅ **Material:** Tinned Copper is the industry standard due to its excellent conductivity and corrosion resistance.
• ✅ **Insulation:** Must be **UV-resistant** (e.g., XLPE jacket) to prevent degradation from sunlight and extreme temperatures over 25+ years.
• ✅ **Voltage Rating:** Typically rated for 1000V DC or 1500V DC, well above the system voltage for safety.

2. Choosing the Right Thickness (Size/Gauge)

Cable size (measured in mm² or AWG) is crucial to minimize voltage drop. Common sizes are 4 sq. mm or 6 sq. mm.

• **Small Systems (1kW-3kW):** 4 sq. mm is often sufficient for shorter runs.
• **Large Systems (5kW+):** 6 sq. mm is highly recommended, especially for longer cable runs to minimize power loss.
• **Rule of Thumb:** Always oversize the cable—a thicker cable reduces loss and increases efficiency.

Conclusion

Do not use standard household wire. The best cable for a solar system is a **UV-rated, double-insulated, Tinned Copper DC Solar Cable (4mm² or 6mm²)** from a certified brand. This ensures longevity, safety, and maximum power delivery. 💡
